Tuya Smart Gateway

• Seamless integration: connects with Tuya-compatible smart locks and smart home devices.
• Remote access: manage compatible devices from anywhere through the Tuya Smart app.
• Real-time alerts: receive instant activity notifications and updates.
• Plug-and-play setup: simple WiFi or Ethernet connection within minutes.
• Multi-device support: up to 200 wired devices or 45 wireless devices, depending on model.
• Secure encryption: AES 128-bit data protection.
• Compact design: discreet footprint for homes, rentals and smart property setups.

• Homes: connect and manage Tuya-compatible smart devices from one app.
• Airbnb and rentals: manage compatible locks remotely and reduce key handovers.
• HMOs and shared properties: support smart room access and connected devices.
• Smart home setups: link locks, sensors, lighting and other Tuya-compatible devices.
• Small businesses: manage compatible access and device control more easily.

• SwiftLock™ Smart Lock
• RoomVault™ Smart Lock
• Facial Recognition Smart Lock Range

• Tuya Smart Gateway, selected model
• Power cable or adapter, model dependent
• Quick start guide

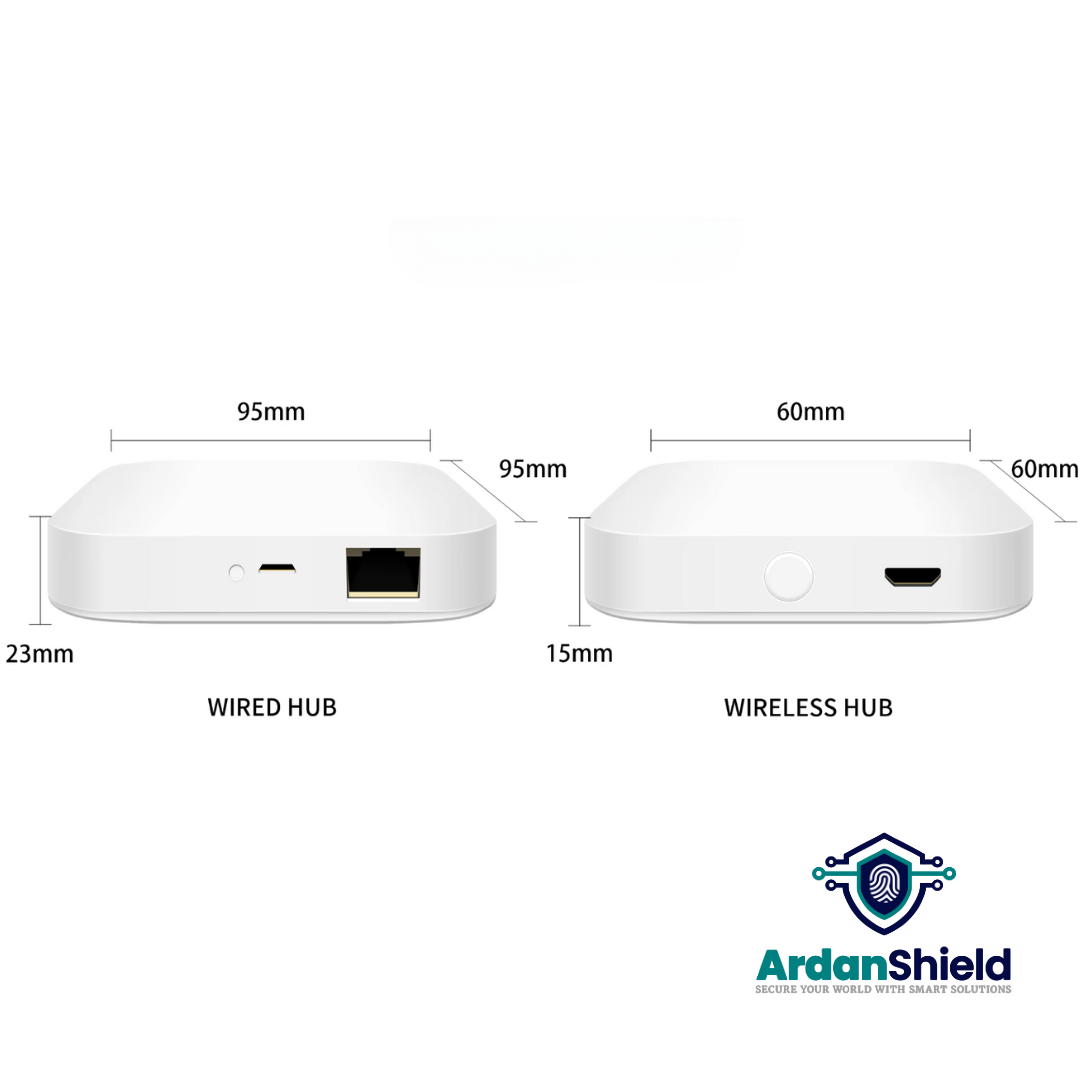

• Dimensions: wired 95 × 95 × 23 mm / wireless 60 × 60 × 15 mm
• Connectivity: WiFi 2.4 GHz / RJ45 Ethernet, model dependent
• Compatibility: Tuya-compatible devices, iOS and Android app
• Power supply: USB 5V/1A
• Range: up to 30 m / 98 ft
• Encryption: AES 128-bit
• Operating temperature: −10°C to 55°C
• Device capacity, wired: up to 200 devices
• Device capacity, wireless: up to 45 devices

• Plug the gateway into power.
• Connect to 2.4 GHz WiFi or Ethernet, depending on model.
• Add the gateway to the Tuya Smart app.
• Pair compatible locks, sensors, lighting or smart devices.
• Position within suitable range of connected devices for best stability.

This gateway is designed for Tuya-compatible devices. It is not the same as a TTLock Gateway and should be matched to the app ecosystem used by your smart lock or device.

Please check whether your lock uses Tuya SmartLife or TTLock before ordering.

If you are unsure, contact us before ordering through our contact page.

• In stock: dispatching this week
• Free UK delivery available on orders through ArdanShield.
• Typical UK delivery: usually around 5–7 working days.
• 30-day returns available in line with our returns policy.
• Secure checkout through trusted payment providers.
• Support: UK-based email and WhatsApp guidance available.

Does this work with ArdanShield locks?

Yes, it works with Tuya-based ArdanShield locks such as SwiftLock™, RoomVault™ and compatible facial recognition smart locks.

How many devices can I connect?

Depending on the model, it can support up to 200 wired devices or up to 45 wireless devices.

Is the Tuya Smart Gateway secure?

Yes. It uses AES 128-bit encryption to help protect data and device connections.

Does it work on 5 GHz WiFi?

For WiFi setup, please ensure your router supports 2.4 GHz WiFi, as many smart home gateways and devices require 2.4 GHz connectivity.

Is this the same as the TTLock Gateway?

No. This is for Tuya-compatible devices. If your lock uses TTLock, choose the TTLock Smart Gateway instead.
